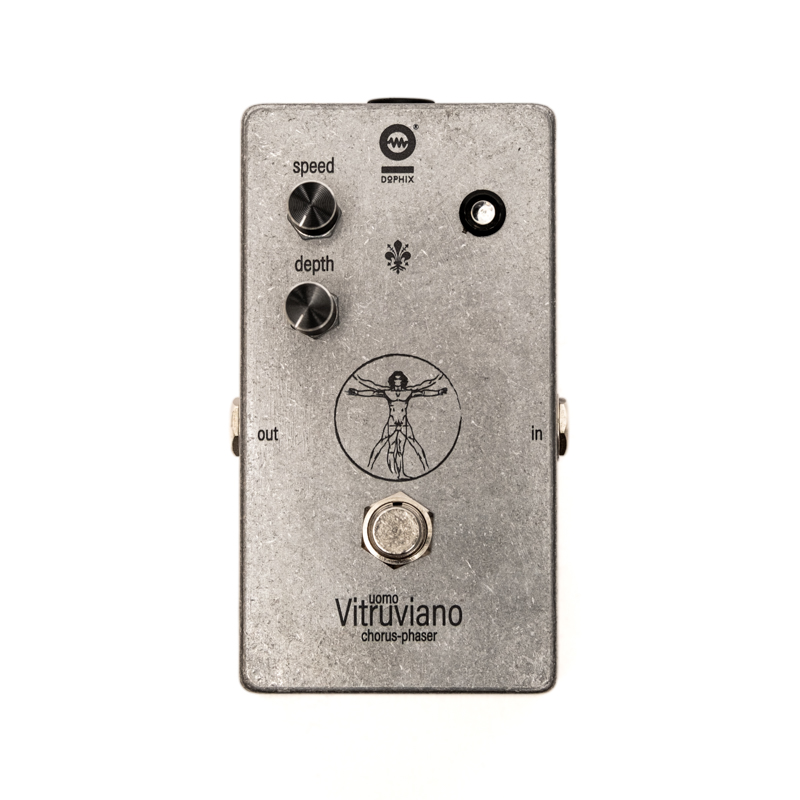

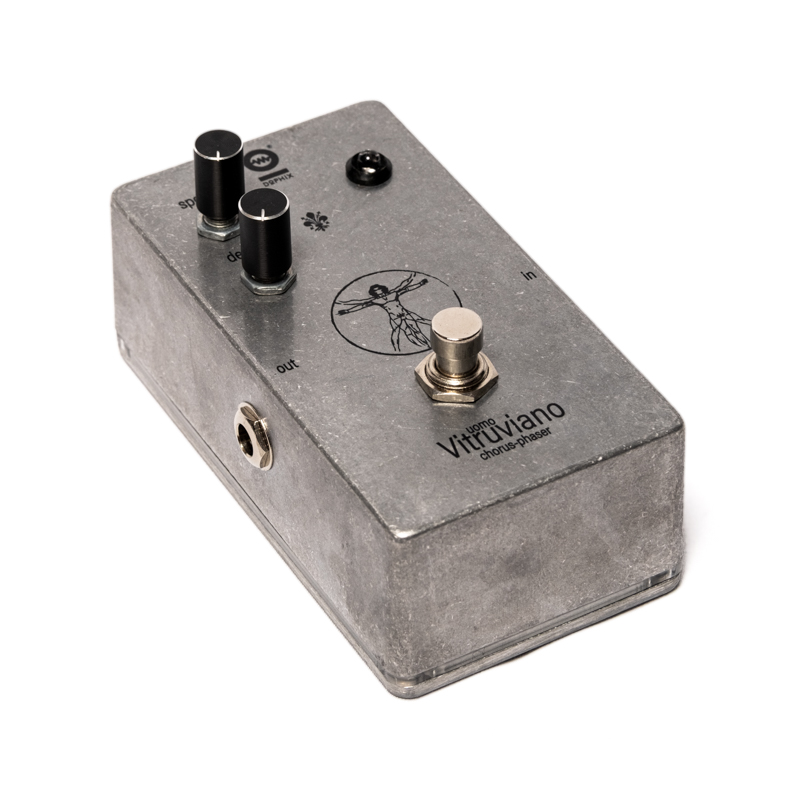

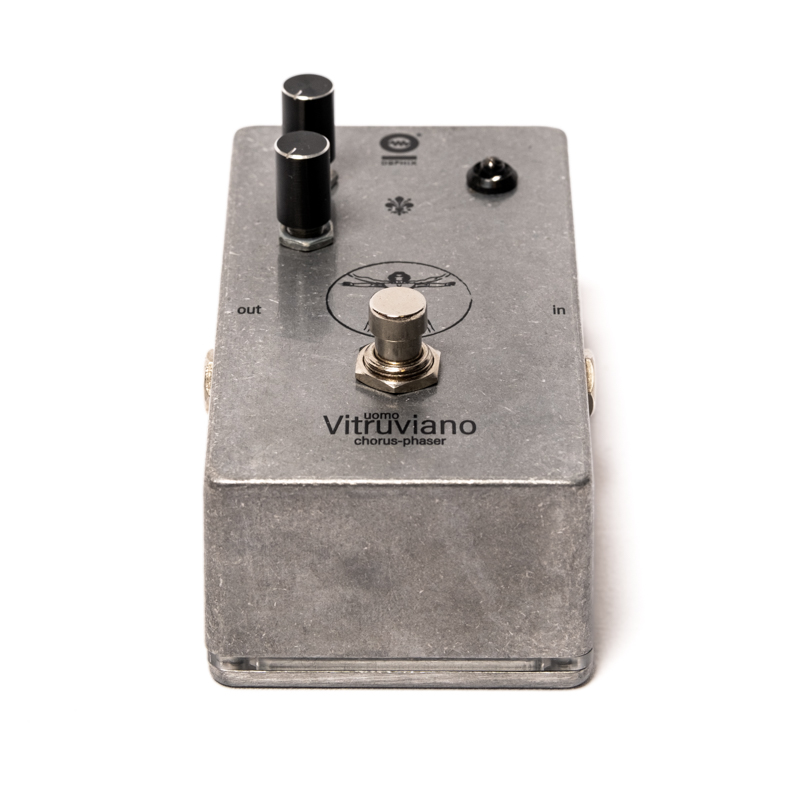

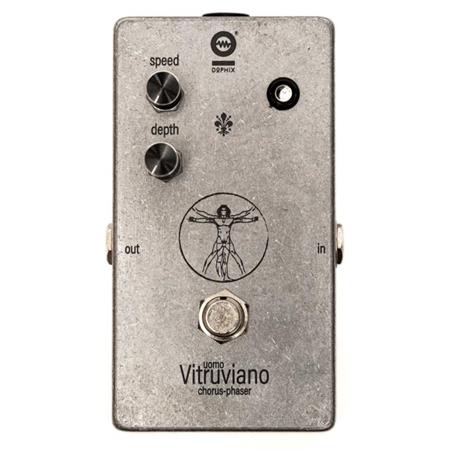

UOMO VITRUVIANO CHORUS PHASER

Pedal with 2 Controls - Right "Speed"; - Left "Depth".

Chorus/Phaser with analog modulation mixer.

Through the use of a delay chain it adds a phase variation to the signal without modifying the input harmonics.

The two controls, "Speed" and "Depth": Speed: acts on the speed of the modulation. Depth: modulates the amplitude of the oscillation.

Research of the vintage component with: integrated and transistors of the series belonging to the production lots of the '70s.

Development of the manual circuit made with attention to the treatment of audio signal tracks. Mechanical robustness, guaranteed by board-mounted components.
High quality TRUE BYPASS switch that guarantees the integrity of the signal with the pedal off and eliminates any additional distortion to the effect.

High brightness LEDs ensure visibility of power status even in conditions of direct reflection on the pedal.

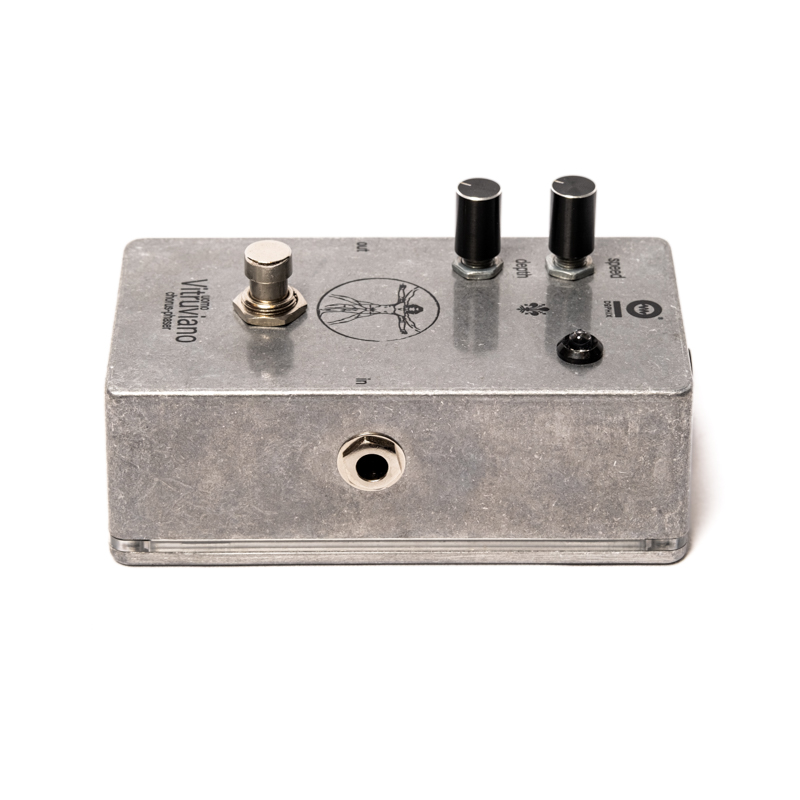

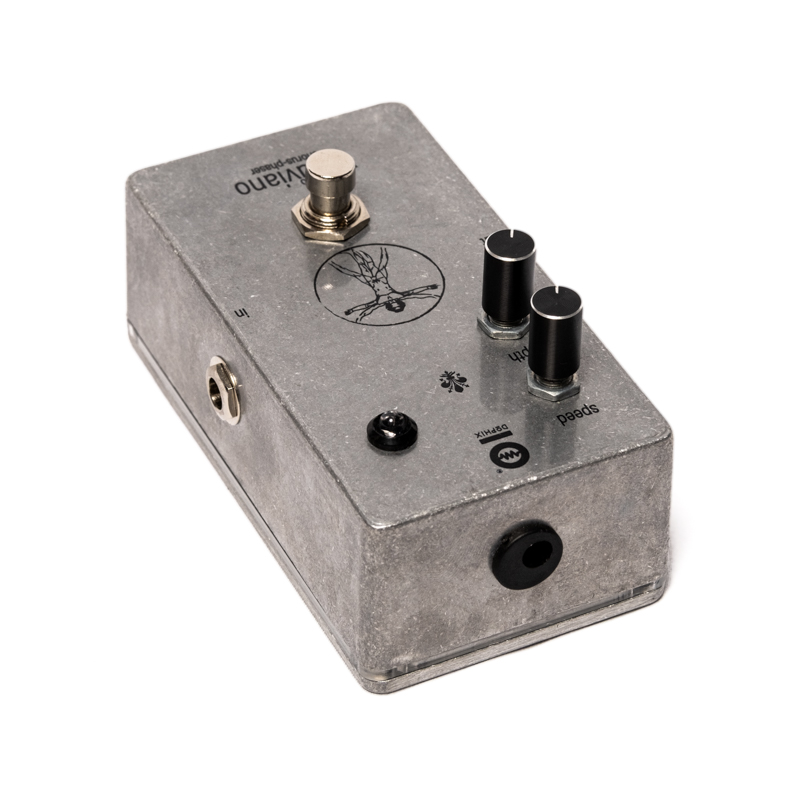

6.3 mm 1/4" input/output jacks located on the side of the pedal.

Input impedance 1 Mohm, output 300 ohm.

Current with led on 19mA, standby 500 uA.

EAN code: 8053839780119
