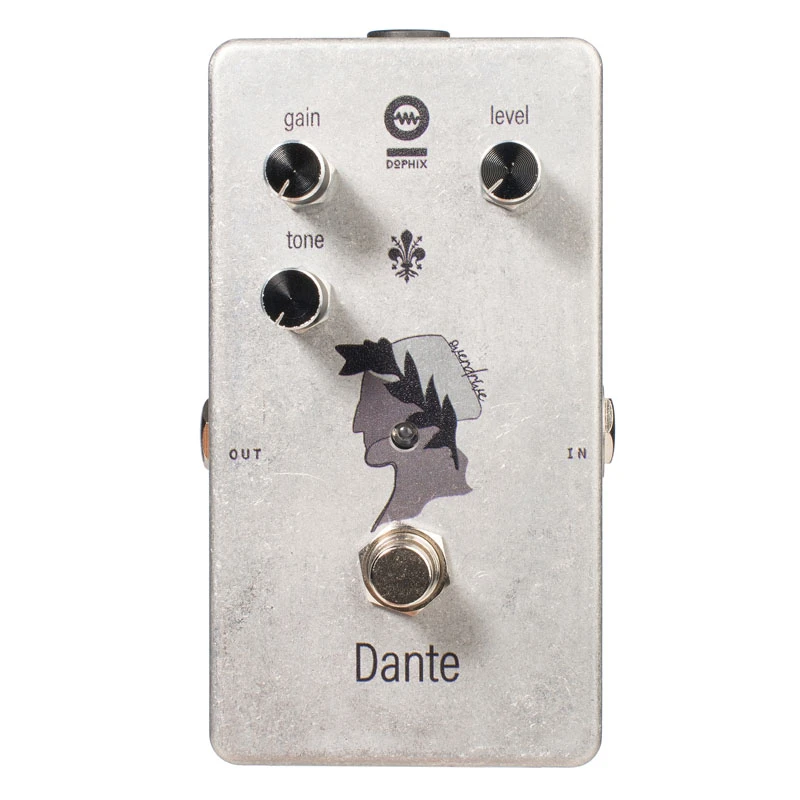

DANTE OVERDRIVE

Very dynamic overdrive with three controls: volume, tone and gain. The effect allows a complete adjustment from clean sounds to crunch to distortion. Defined sound with character given by a full control of the level and tone of modulation.
6.3 mm 1/4" input/output jacks located on the side of the pedal.

TRUE BYPASS switch and carbon impasto resistors are one of the specific choices made for the standard of our pedals. The components are researched in a project with electronic devices belonging to vintage series, elements that distinguish a character and a warm and defined sound.

Power supply 9 volts DC through internal battery or external stabilized power supply.
Battery replacement is possible by removing the four screws on the bottom cover.

Input impedance 1 Mohm, output 300 ohm.

Current with led on 19mA, standby 500 uA.

EAN code: 8053839781727
