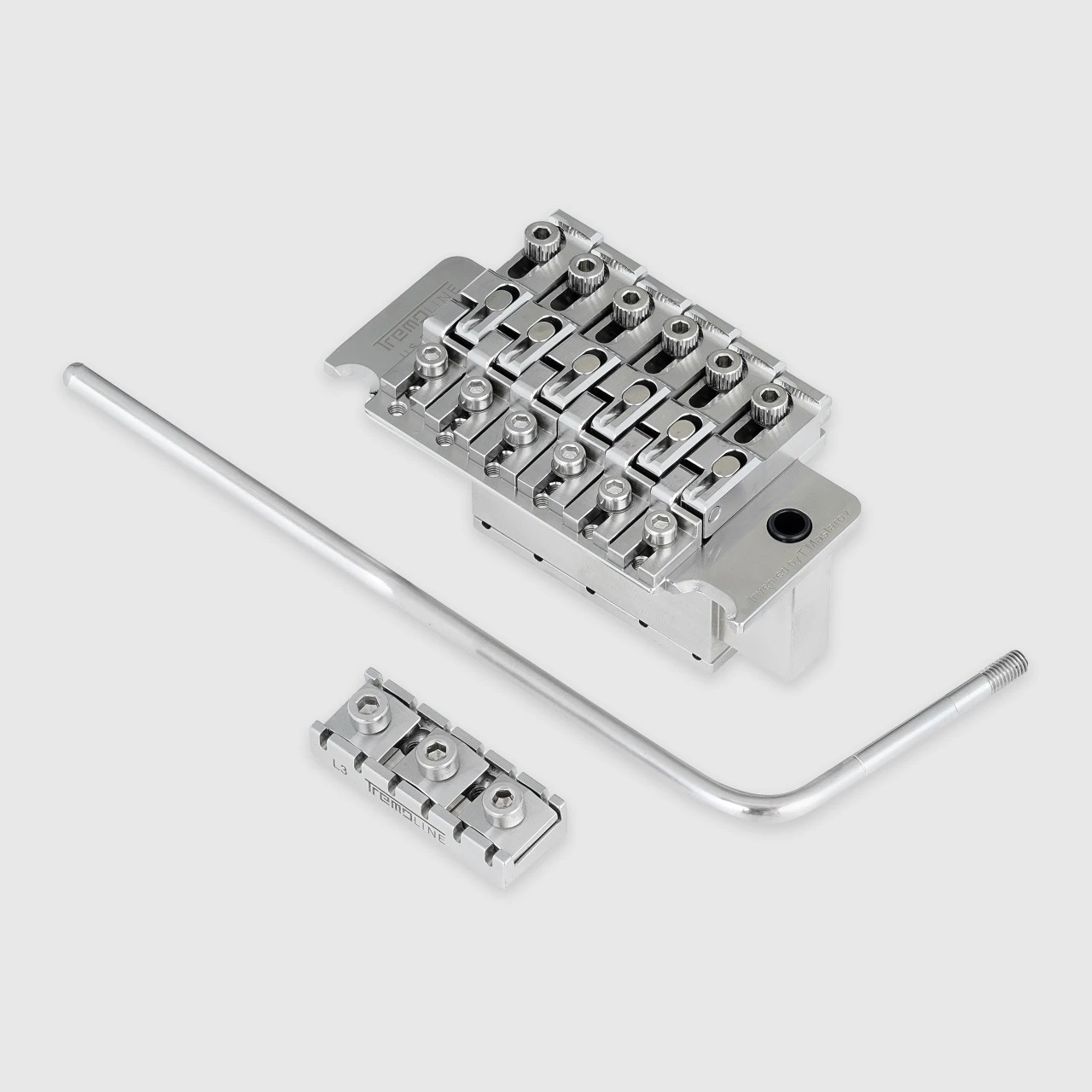

FT36M-L3-SS tremolo system

The Tremoline FT36M is unique and presents the only Flat Top Fine Tuning Double Locking Tremolo system, a new original tremolo system, patented in the USA, Germany and other countries.
BENEFITS and UNIQUE FEATURES
EXTREME LOW PROFILE - achieved thanks to the original solution of lowered fine tuning screws and hidden fine tuning springs into the saddles bodies.
PLAYING CONVENIENCE - achieved thanks to the original multilayer saddle construction and the Flat-top design.
FITS RECESSED FR CAVITY GUITARS – thanks to its ULTRA COMPACT and SMART DESIGN the Tremoline FT36M is a fully functional RETROFIT of the most widely spread Double Locking Tremolo System (FR Original, Special, 1000, PRO and etc.) without any need of additional wood work (around nut and trem cavity).
SOLID STAINLESS STEEL – the Tremoline FT36M is the only tremolo system that is produced only from solid bars and sheets of specially selected STAINLESS STEEL through variety of cold machining processes (no Casting or Sintering processes with poor or questionable mechanical properties). In addition, it is equipped only with stainless steel fasteners.
ENHANCED TUNING STABILITY - achieved thanks to the low friction in some crucial contact points, the locking of the strings and … springs, and the use of solid milled Spring Claw. Dive bombs till your strings hit your pickups, high pitch squeals, trem arm flutters – No problem, the guitar stays perfectly in tune.
EXTENDED STRING LIFE – the use of our original FULL-STRING-CONTACT DESIGN for all string channels into the saddle bodies leads to the lack (or huge reduction) of the unwanted string breakage.
BETTER SOUND and VIBRATION TRANSFER – achieved thanks to the use of our original FULL-STRING-CONTACT DESIGN for all string channels into the saddle bodies and locking nut, and the use of high quality materials.
ENHANCED SUSTAIN – achieved thanks to the use of a thicker solid stainless steel Sustain Block (12mm).
BUTTER-SMOOTH ACTION - the use of our original TREMOLO ARM FIXING SYSTEM with hidden spring mounted and fixed into the Sustain Block and also plastic sleeve made of special engineering plastics, which is designed to withstand heavy loads (It is acid-resistant, dimensionally stable, long lasting and provide low friction) give you that velvety luxurious feel without any backlash, clicking or rattling.
NOISELESS SPRINGS – all tremolo springs are manufactured from precisely selected STAINLESS STEEL spring wires without any galvanic (Chrome or Zinc plating), or Polymer coating. They are also tightly locked to the bottom of the Sustain Block.
LACK of MAGNETIC INTERFERENCE NOISE – achieved thanks to the use of non-magnetic stainless steel for all parts.
LACK of ADDITIONAL INTONATION TOOL – the Tremoline FT36M is equipped with an Adjustment screw allowing very precise and easy Intonation adjustment without need of using of additional intonation tool.
FAST and PRECISE FINE TUNING ADJUSTMENT – the Tremoline FT36M allows very fast, easy and and intuitive fine tuning adjustment with your thumb and index fingers, but also with allen key or with the Adjustment screw. The replacement of the ordinary V-shape string slots into the Locking Nut base with thin U-shape slots also helps to the lack of need (or minimal need) of fine tuning adjustment.
LACK of ADDITIONAL SUSTAIN BLOCK – using of our original VARIABLE SUSTAIN BLOCK HEIGHT system leads to a lack of purchasing the additional sustain block with different height. There are a few height options achieved by means of additional retainer plates.
VARIATY OF LOCKING NUTS (and fixing options) - the Tremoline FT36M is equipped with one of four types of Locking Nuts – right-handed - R2 (width-41.4mm) or R3 (width-42.8mm) and left-handed - L2 or L3. Also there are two fixing options - from above (by two wood screws) and from underneath (by two metric thread screws).
RoHS 2 – all parts comply with RoHS 2 (European Directive 2011/65/EU for the Restriction of use of certain Hazardous Substances).
NON-ALLERGENIC - all parts are NON-ALLERGENIC and comply with ISO 10993-10 (European standard for biocompatibility).
DURABILITY and APPEARANCE – the Tremoline FT36M with its stainless steel nature will be stay strong, shiny and spotless for many years.
ENDLESS LIST of SMALL almost INVISIBLE IMPROVEMENTS - achieved thanks to the years of painstaking research and development of the Tremoline FT36M.
OFFERING ONLY as a SET (tremolo unit + locking nut) – this is the ONLY way that guarantee the functionality and quality of the Tremoline FT36M tremolo system.
Made in Bulgaria.

TECHNICAL DATA
Tremolo Unite type:   double locking
E-E Center width:   52.0mm / 2.06"
String spacing:     10.4mm / 0.41"
Pivot Stud spacing:   74.2mm / 2.92"
Tremolo Unit radius:   405.4mm / 16.0"
Sustain Block thickness: 12.0mm / 0.4724"
Sustain Block Height:   35.0mm / 1.38"

Locking Nut type: L3
Orientation: Left handed
Nut Base width: 42.8mm / 1.6875"
E-E center width: 36.0mm / 1.4155"
String spacing: 6.6mm / 0.2591"
Locking Nut radius: 304.8mm / 12.0"
Nut Base fixing: from above - underneath
Retainer Bar kit: included

SPECIFICATION
Tremoline FT36M tremolo system set includes following parts:
Tremolo Unit set:   1
  Baseplate   1
  Sustain Block   1
  Retainer Bar   1
  Saddle Assembly   6
  String Lock Insert 6
  Fine Tuning Screw 6
  Saddle Mounting Screw 6
  String Lock Screw 6
  Trem Mounting Screw 2
  Retainer Screw   2
  Shim Ring   12
  Tremolo Arm Spring 1
  Tremolo Arm Sleeve 1
  Tremolo Arm Screw 1
Spring Claw:     1
Adjustment Screw:   1
Pivot Stud:     2
Pivot Insert:     2
Tremolo Arm:     1
Tremolo Spring:     4
Spring Claw Screw:   2
Clamp Cable Lug:   1
Cable Lug Screw:   1
Key wrench 1.5mm:   1
Key wrench 2.5mm:   1
Key wrench 3.0mm:   1
Retainer Plate:     1
12mm Retainer Screw:   2
Locking Nut Set:   1
  Locking Nut Base 1
  Locking Nut Clamp 3
  Locking Nut Washer 0
  Clamp Screw   3
  Nut Mounting Screw 2
Nut Mounting Bolt   2
Nut Mounting Washer   2
Nut Bar       1
Nut Bar Screw     2
User Manual     1
