Module "sans soudure" - VOLUME avec switch actif-passif
Réf. P015Made by : Vaudoo Audio
Module "sans soudure" - potentiomètre de VOLUME avec switch actif-passif «PUSH / PULL». 250 kOhms courbe A (log).
39,00 €
Add to cart
Shipping from 07/01/2026
Module "sans soudure" - potentiomètre de VOLUME avec switch actif-passif «PUSH / PUSH». 250 kOhms courbe A (log).
48,00 €
Add to cart
Shipping from 07/01/2026
In stock
Shipping from 07/01/2026
In stock
Shipping from 07/01/2026
Shipping from 8,00 €
Buy it through our partners
Product made in France

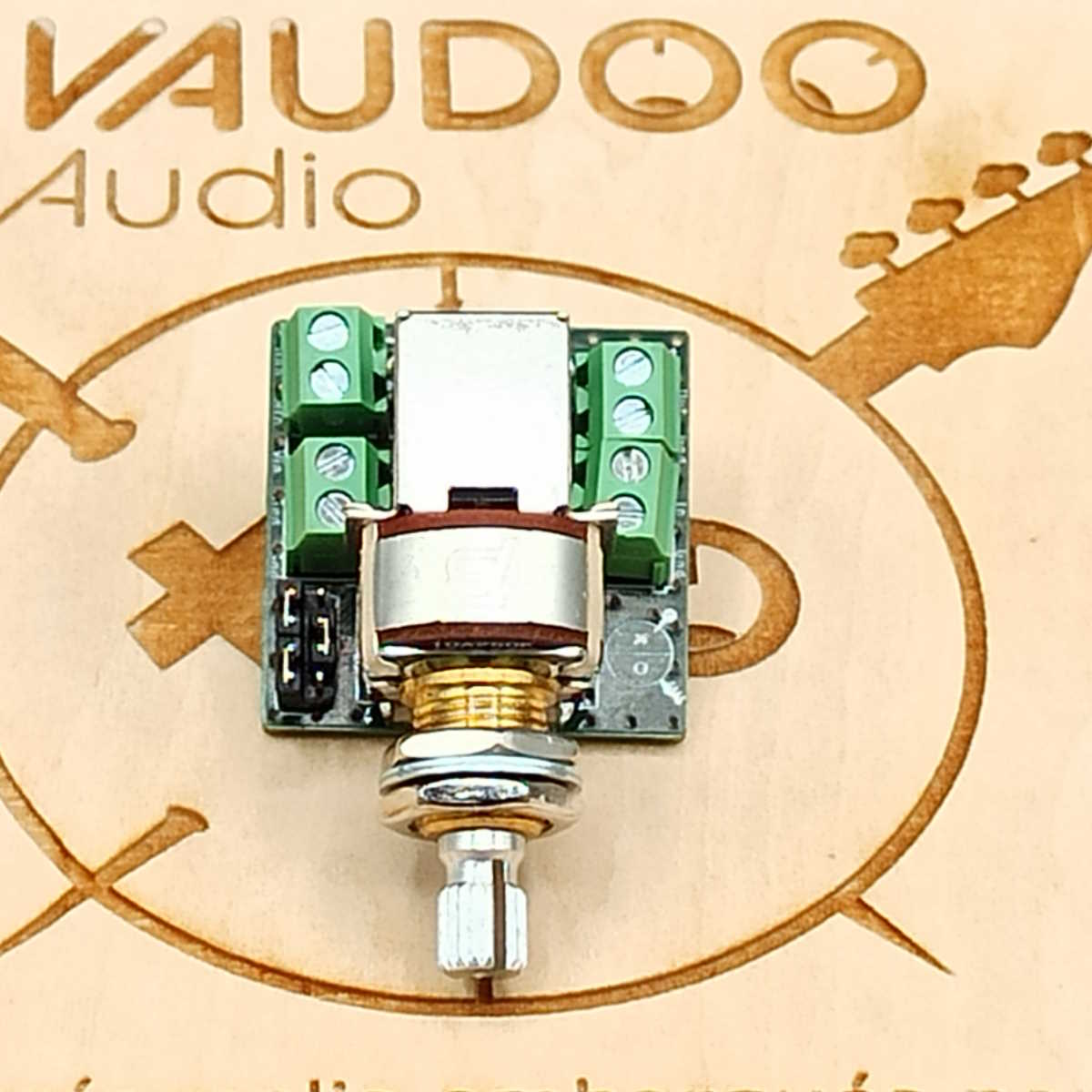

Solderless module - VOLUME potentiometer with active-passive switch. 250 kOhms curve A (log).
This module lets you adjust the volume precisely and switch from active to passive:
- By pulling and pushing the potentiometer on the "PUSH-PULL" versions
- By pressing the potentiometer on the "PUSH-PUSH" versions

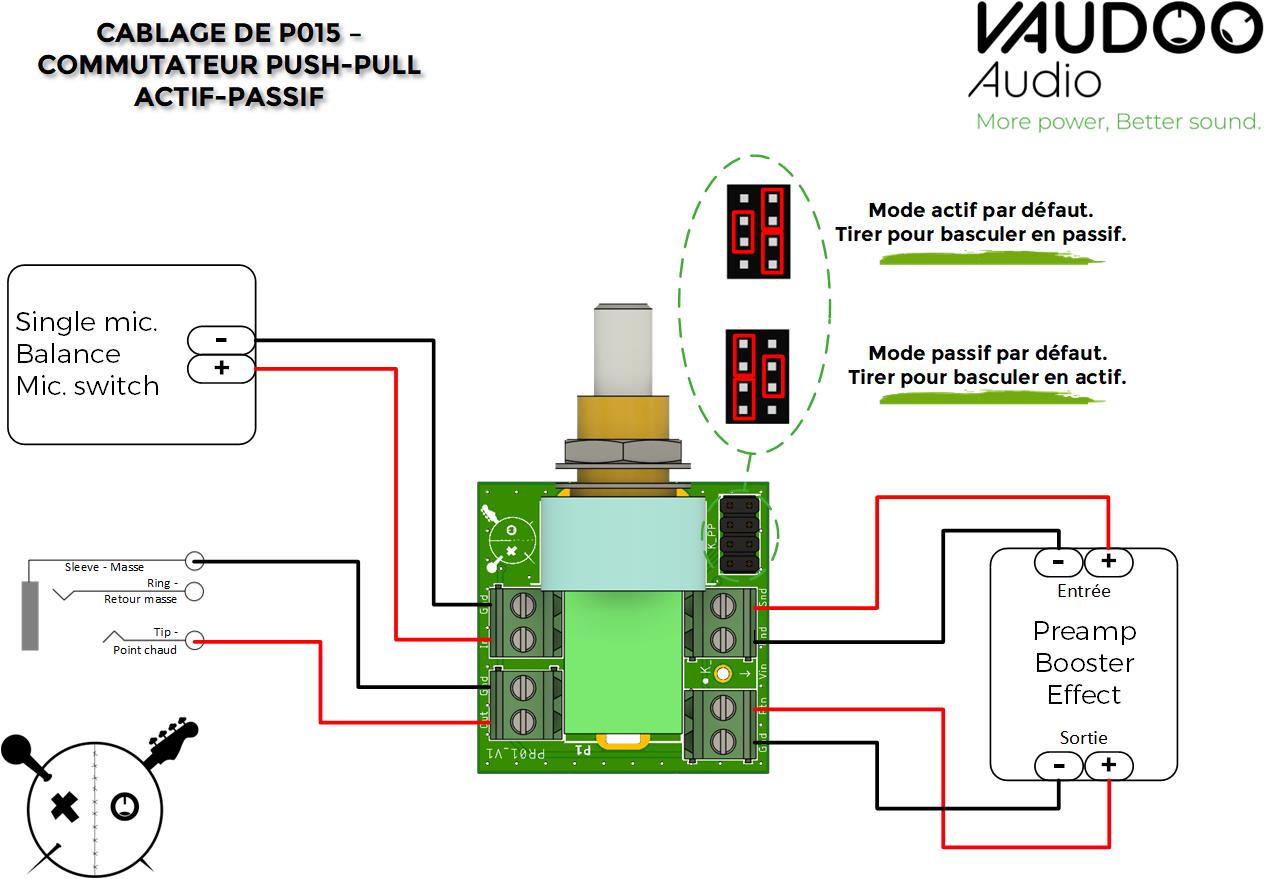

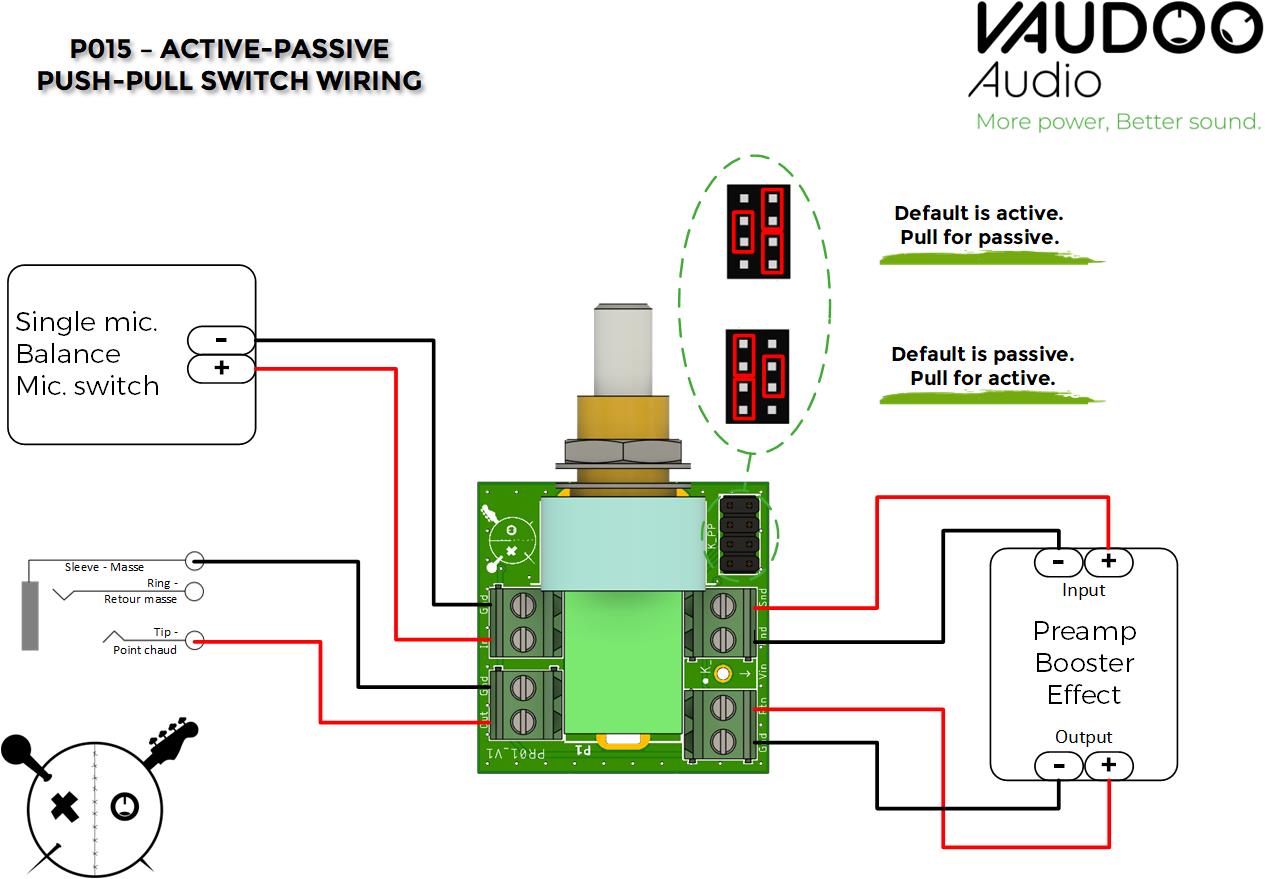

Equipped with screw terminals, you can connect, without soldering:
- at the input: a microphone, a microphone switch, a microphone balance...
- output: jack
- "send" port: input from preamp, effect...
- "return" port: output from preamp, effect...
Jumpers on the card let you choose whether it's activated when the potentiometer is out or in.
You can order it as a stand-alone unit, or as an option for pre-wiring with one of our Vaudoo Audio preamplifiers.
