My range of built-in preamps can be enjoyed like fine abbey beers:

Pilsdoo series – ‘boosters’ preamps (coming soon)
Do you like quality and simplicity?
I recommend my Pilsdoo series: preamps without controls, commonly known as ‘boosters’. Designed primarily for guitarists who want a punchy sound that is more resistant to interference, they may also be suitable for some bassists.

Dubbeldoo series – 1 or 2-band preamps
Do you prefer something a little more refined, without complexity?
I suggest my Dubbeldoo series: 1 or 2-band preamps that offer precise bass and treble controls. With one of the widest bass adjustment ranges on the market, they will satisfy bassists who can't get enough (+/-15dB and even +/-19dB if you don't need the treble controls).

Tripeldoo series - 2- and 3-band preamps with 1-medium band
Do you have more sophisticated tastes and are looking for more intense sensations?
You're sure to find what you're looking for in the Tripeldoo series: 2- and 3-band preamps that offer 1 midrange band in addition to the Dubbeldoo settings.

Quadrupeldoo series – 3- and 4-band preamps with 2-medium band
Do you enjoy rich sensations and consider a little complexity a necessary evil in the pursuit of perfection?
Then the Quadrupeldoo series is for you: a second midrange band, in addition to the Tripeldoo settings, will allow you to “sculpt your sound” to suit any situation.
___________________

Simple installation

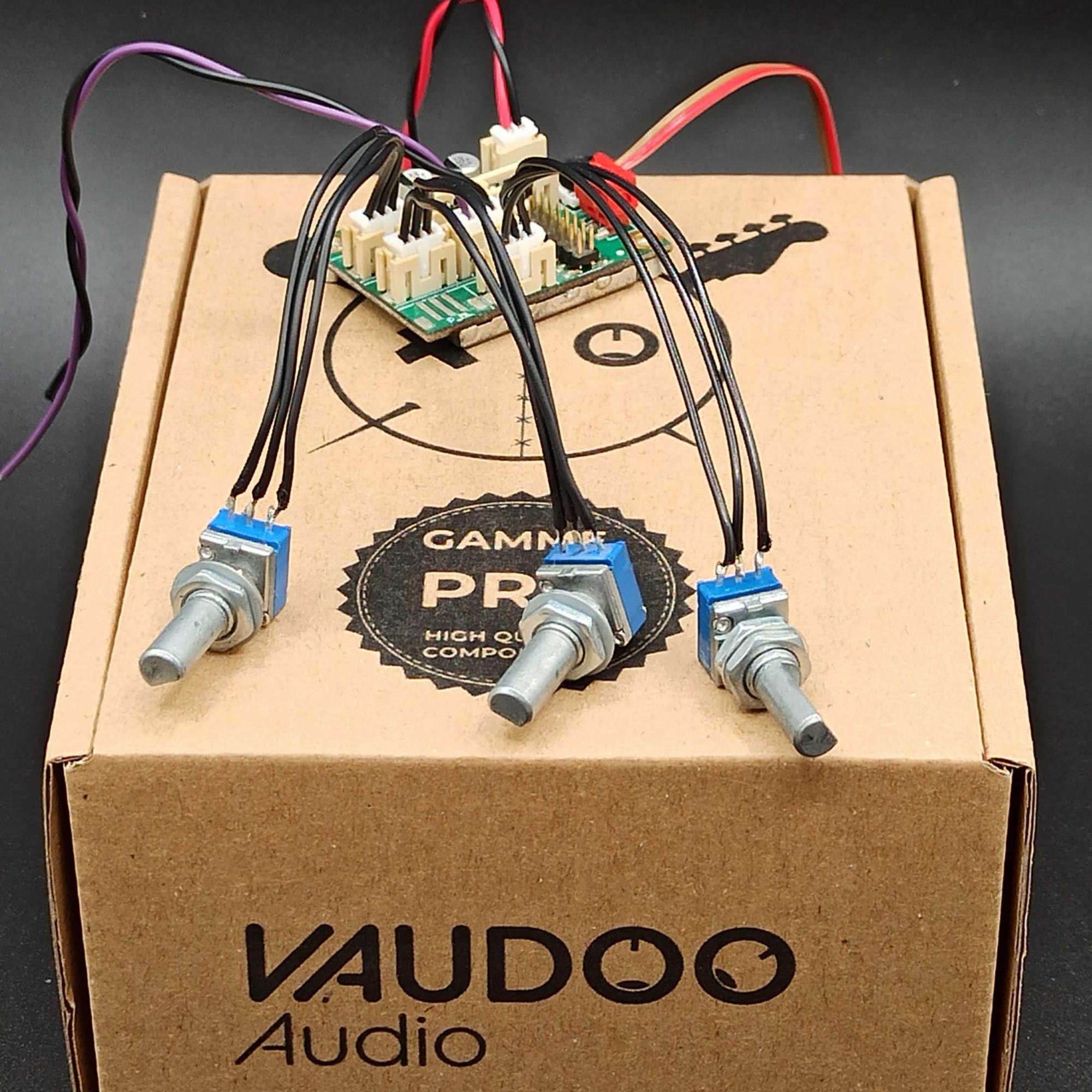

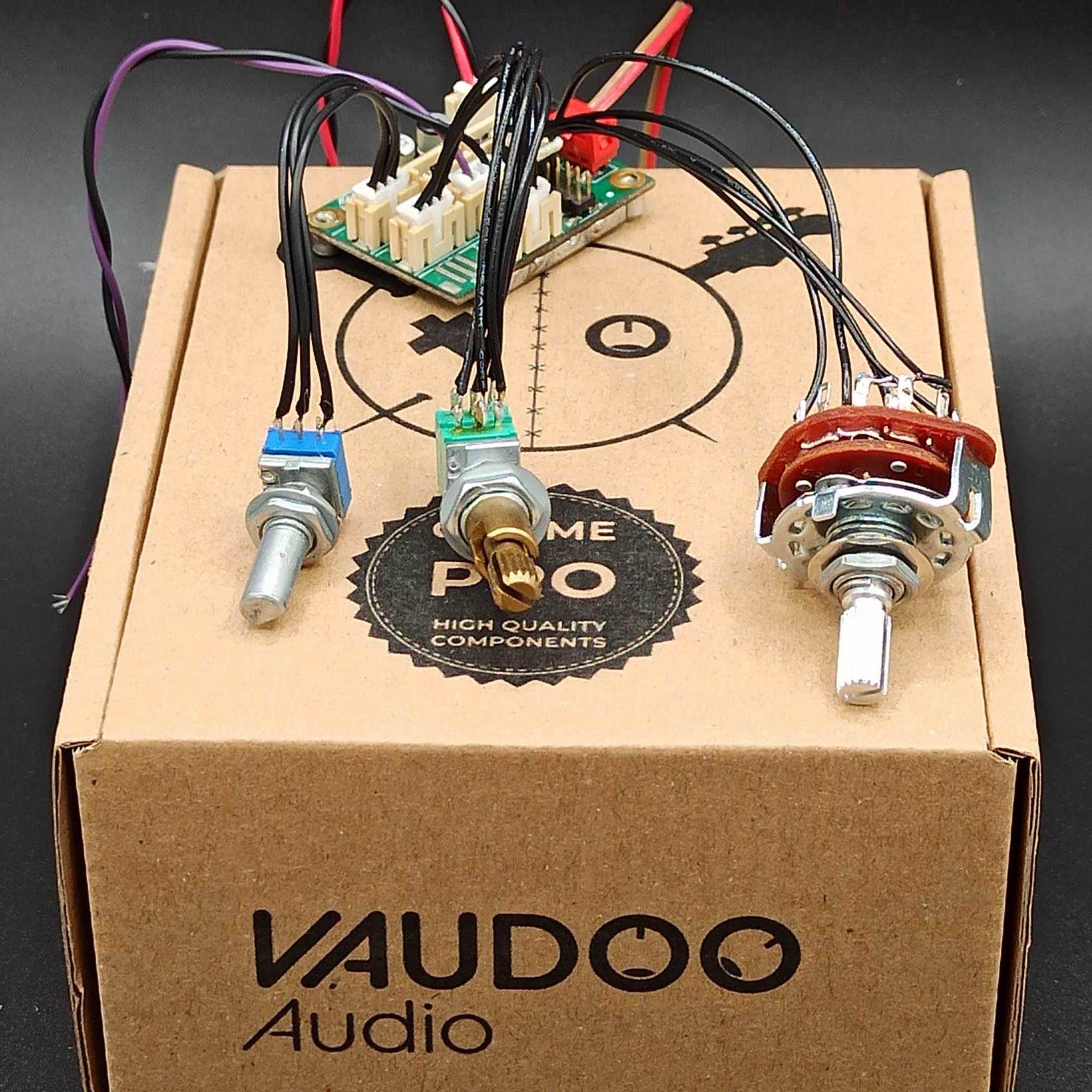

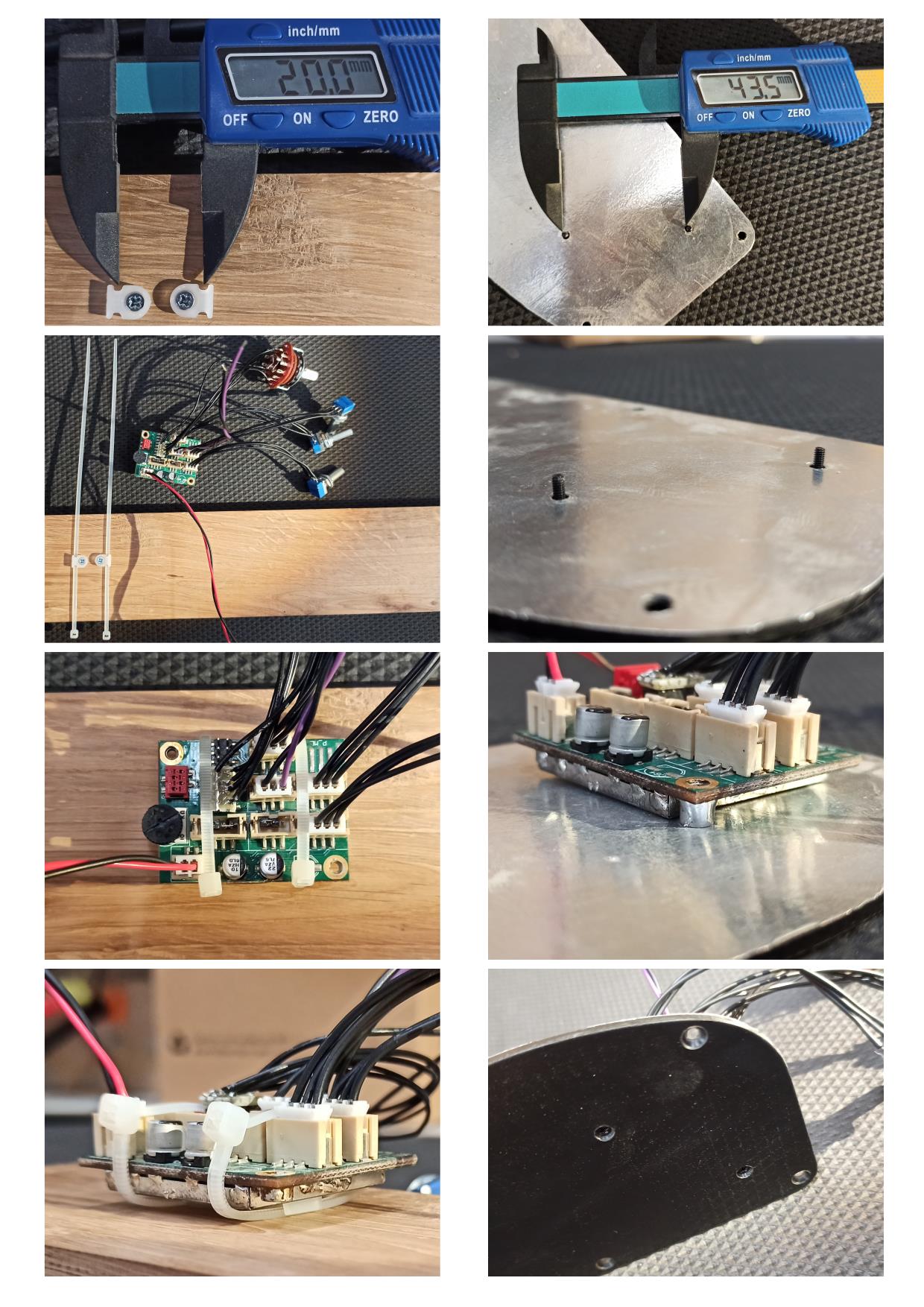

Our products are delivered "ready to integrate": configured, wired and supplied with all mounting accessories.

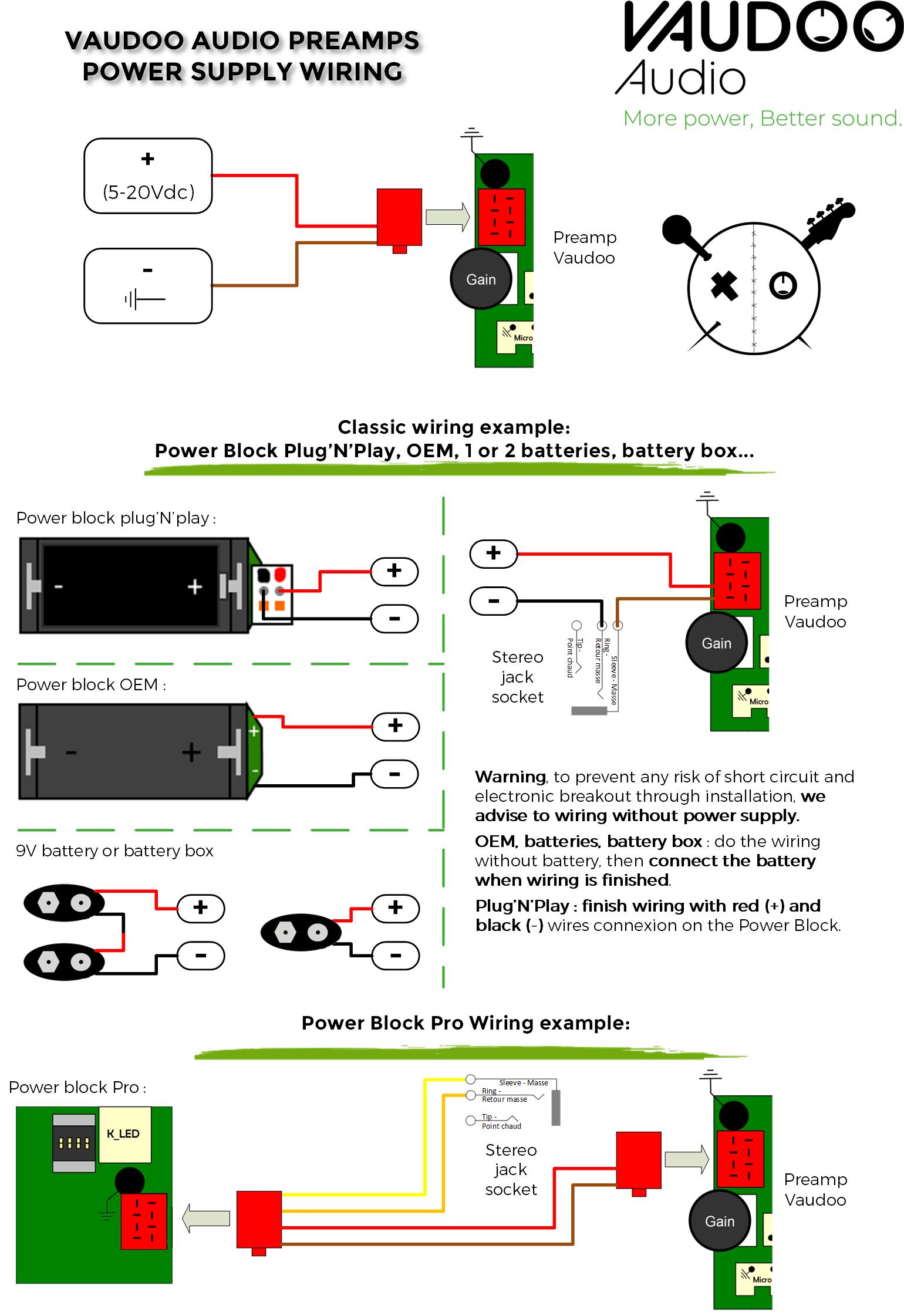

Powered by a Power Block: a simple cable to plug in.
Powered by 1 or 2 9V batteries: wired to the jack and the battery, like a classic preamp.

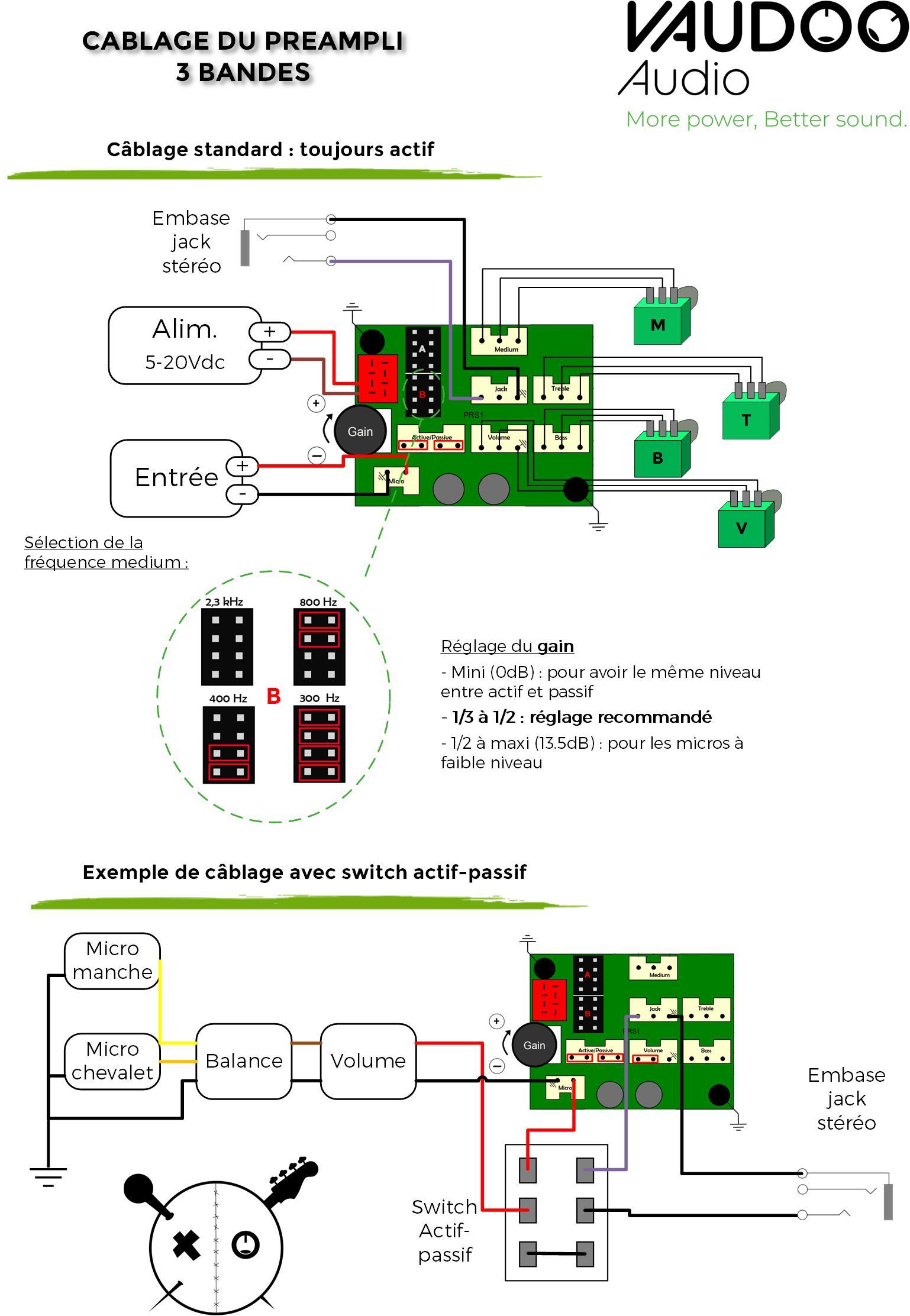

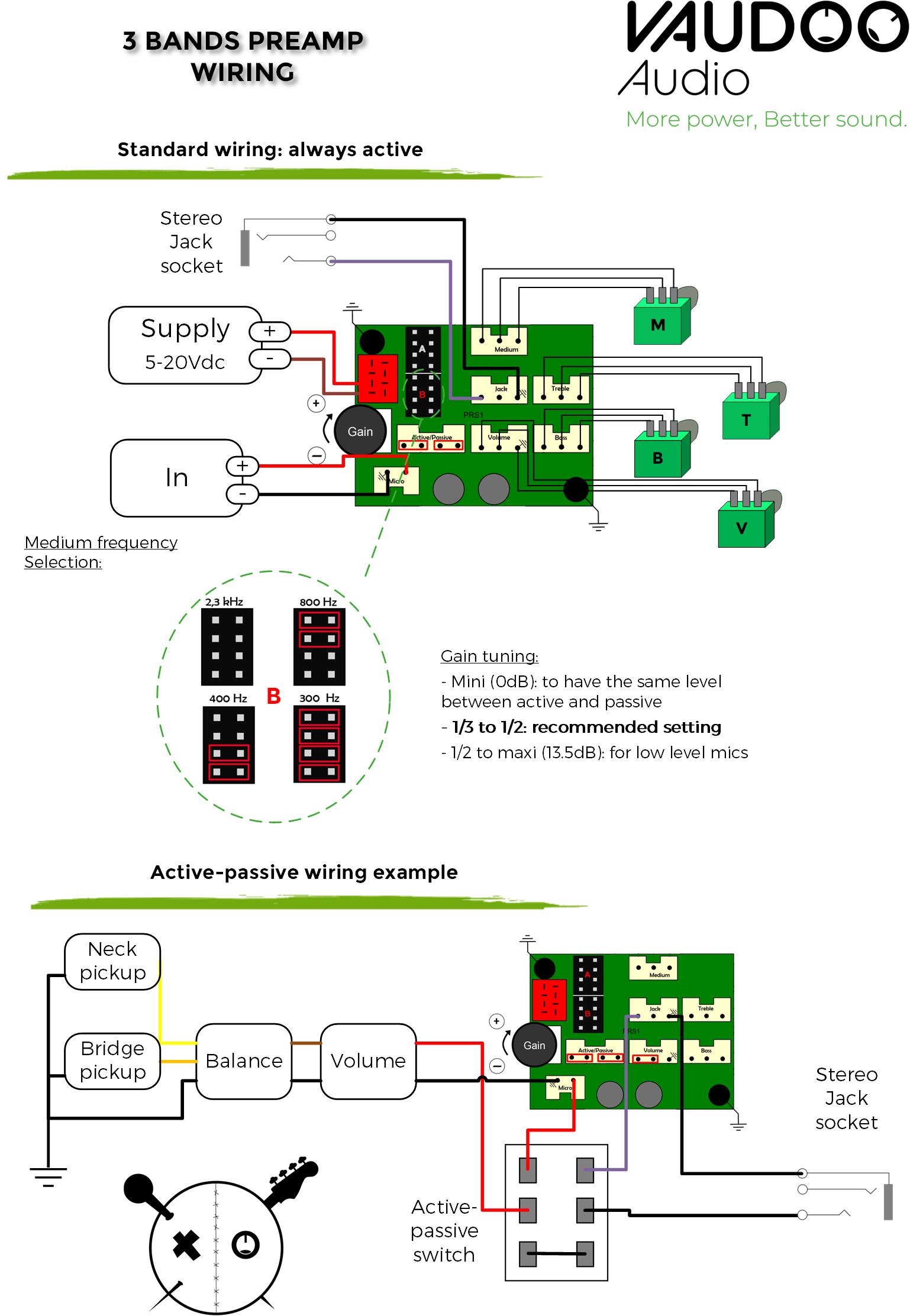

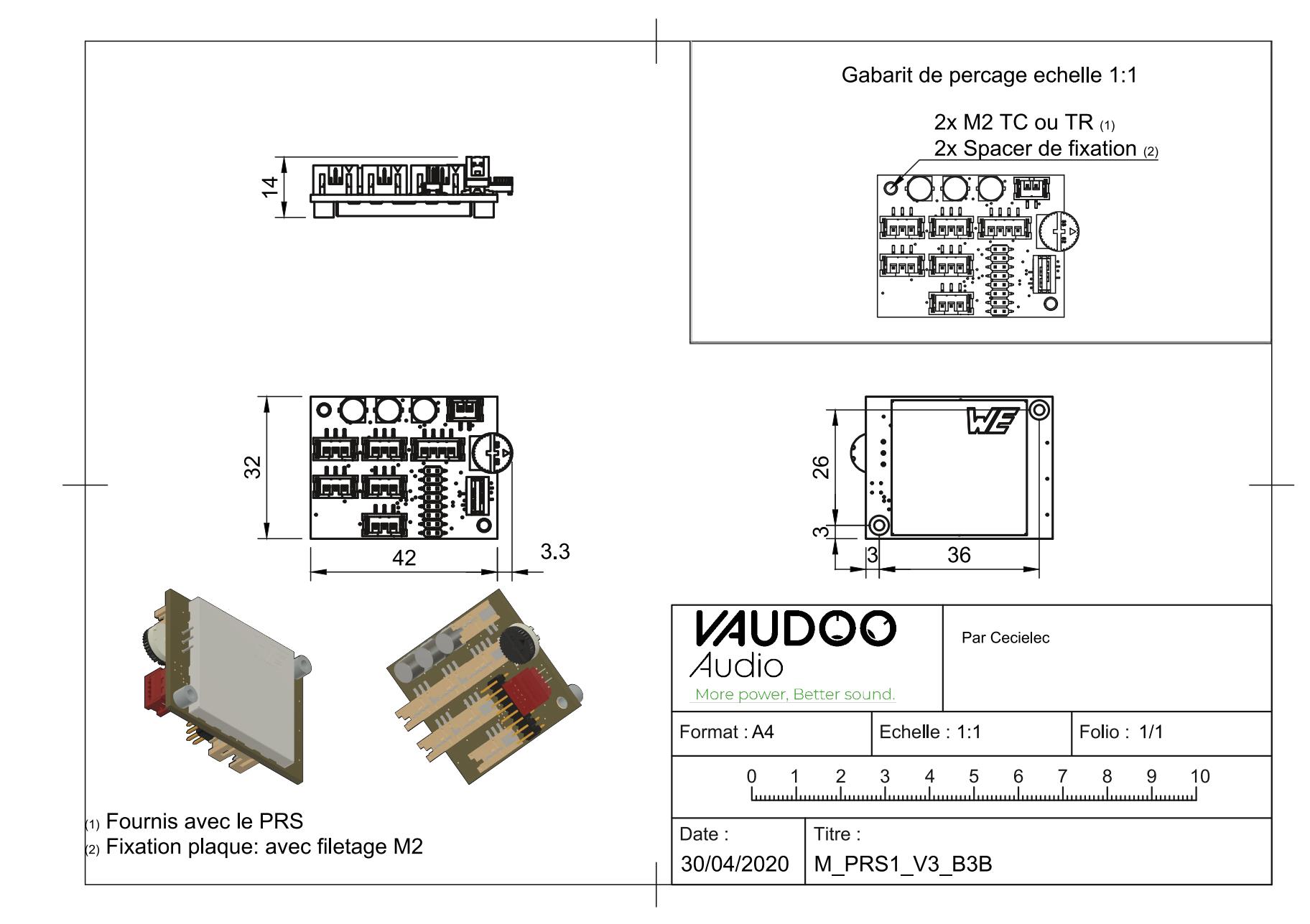

Complete technical documentation available on our website: wiring diagrams, drawings...
For completely weldless integration (or if you simply want advice), contact me with photos of your instrument's cavity, and I can advise you and guide you towards the most suitable Vaudoo accessories.

Perfect compatibility

All our Vaudoo-Audio preamplifiers are universal and compatible with all types of bass and guitar.
They have an adjustable input gain stage, which allows to adapt to all types of microphones.

High quality sound

Our preamplifiers take advantage of the onboard power source (Power Block or 9V battery) to offer you an enhanced sound experience and audio quality comparable to an external preamp.
They are configured to become totally transparent when the knobs are at zero, in order to respect the character of your microphones.

The unique feature of our preamps is that the midrange bands can be adapted to your style:
By default, this can be modified from the card, but it is also possible to use an external switch, either in the configurations offered or added as an accessory (see below).

List of selectable medium frequencies (on the card or via an external switch):
300 Hz, 400 Hz, 800 Hz, 2.3 kHz.

The frequencies recommended by Vaudoo :

- 300 Hz:  "ROUDNESS"
 Strengthens the lower part of the spectrum, in addition to the bass. Very appreciated by the «green-yellow-red» musicians, but also by some rockers a little fat...

- 800 Hz:  « FREQUENCY TO SHARE »
Feeling a bit lost in the mix? Just turn up that frequency (instead of competing for volume...) and there you go, you can be heard! Didn't work?
That means another musician is already occupying that frequency... so lower it and you can add a little volume back into the rest of the spectrum
(without encouraging the others to compete...).
800Hz is also the frequency that best suits fretless and worth attenuating on funk and heavy guitars.

- 2.3 kHz:  « SLAPPING »
Brings out the percussive side, complementing the ‘brilliance’ of the trebles. Highly appreciated for slap or pick playing.
It is also this frequency that I recommend, instead of the trebles, in my ‘metal’ configurations.

Other available frequencie:
400 Hz (low mids): Frequency found on other preamps (Aguilar®)

WHAT YOU NEED FOR STANDARD OPERATION AND WHICH IS NOT INCLUDED IN THE KIT:
- Power supply - Power source (power block, 9V battery, etc.) and cut-off (jack, switch, etc.).
- Volume and pickup switch
- Potentiometer and rotative switch knob

POSSIBLE CUSTOMISATIONS ON REQUEST (at no extra charge):
- cable length: 10 cm (standard), 8 cm, 15 cm, other
- direction of rotation: right-handed (standard) or left-handed

AVAILABLE OPTIONS (available in the Vaudoo-Audio shop):
- P013 - Volume for always-active system
- P024 - Volume for active and passive system
- P015 - Volume with «PUSH / PULL» active-passive switch
- P016 - Volume with «PUSH / PUSH» active-passive switch
- P001 - Passive balance
- S014 - 2-pickups toggle switch: 1, 2 or 1+2
- S010 - 3-pickups rotative switch: B-BsM-BpN-N
- Other pickups switch (price on request).
- P027 - Tone control potentiometer
- P030 - Tone with «PUSH / PULL» active-passive switch
- P029 -  Tone with «PUSH / PULL» active-passive switch
- P039 - Master tone potentiometer for 2 pickups
- P040 - Master tone potentiometer for 2 pickups and active-passive ‘PUSH-PULL’ switch.
- KJ02 - Pre-wired ‘3.5mm panel’ jack connector for preamp and Power Block PnP (Plug'N'Play)
- KJ03 - Pre-wired ‘tube’ jack connector for preamp and Power Block PnP
- KB01 - PP3 battery contact (for 9V battery) to be wired yourself
- N409 - Cable wired with PP3 contacts for 1 x 9V battery
- N418 - Cable wired with PP3 contacts for 2 x 9V batteries in series (18V system)
- S002 - Pre-wired Active-Passive ‘PUSH/PUSH’ Switch for Preamp
- S003 - Pre-wired active-passive ‘TOGGLE’ switch for preamp
- S005 - 2-frequency toggle switch
- S006 - 3-frequency toggle switch
- S007 - 3-frequency rotative switch
- Single metal potentiometer knobs: black, chrome or gold
- Double (stacked) metal potentiometer knobs: black or chrome

These options are items to be added in your basket.
For any question or particular request, contact me.
